ATX Breakout board - yet another group project?

Awesome! I’ve looked at my parts a couple of times this week (insanely busy this week though so no chance to do anything with them)… but I’d love to join in on the group build night as I’ve never used a reflow oven. Sounds like it could make my life slightly easier!

@ashley
@funvill
@garble7
@hjsvhsweb
@wander
@Arrgh
@rsim
@AndrewTilston

@packetbob is running a workshop on Thursday. I’ll make sure he has the rest of the kits.

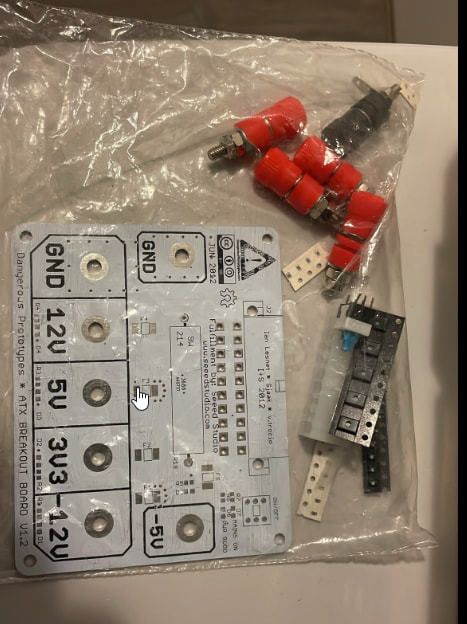

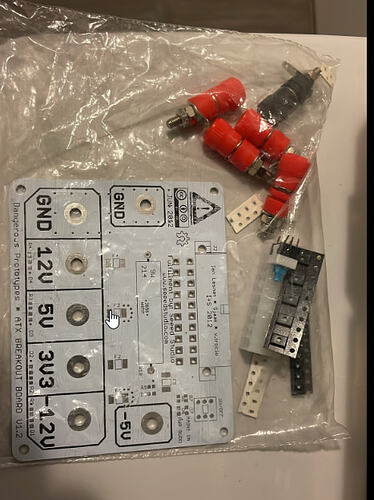

I have more red posts and pcbs now so there are as many kits as people want.

Harondel, thanks for the payment I’m not sure of your talk login are you @hjsvhsweb ? Shall I leave the kits in the dropbox for you?

I cut some acrylic plates on the laser for this project today. You can get the cad files from http://dangerous-prototypes-open-hardware.googlecode.com/svn/trunk/Sick_of_Beige/Hardware/

Note that the top does not have cutouts for all the connectors, you need to mount it at the right height so the connector entries are below the acrylic but there is still enough above to turn them.

I’ll also attach the dxf files I used.

Archive.zip (35.6 KB)
