10pin 2x5 1.27mm jtag programming ribbon cable

General lounge
1

I use these every day, and pretty much the standard for compact jtag connectors
10pin 2x5 1.27mm jtag programming ribbon cable.

But can’t seem to find these easily on digikey.

I am looking for buy lots of these, and I want to get a good price.
Any recommendations where I should get these ribbon cables with 2x5 1.27mm female ends?

:frowning: need to memorize the talk list addresses, so I can create messages from my mobile device easier.

2

Here is a picture

3

I really really like AliExpress
Here’s a quick search, I haven’t looked closely to verify if it’s exactly what you want:http://www.aliexpress.com/wholesale?SearchText=jtag+cable&catId=&initiative_id=SB_20141007073952

And then something like this:http://www.aliexpress.com/item/FC-10-p-double-ended-JTAG-cable-AVR-download-line-30-cm-long-spacing-of-2/1969933682.html

4

thx, but mostly 2.54mm I am sure there are some 1.27mm, but I don’t see them

5

eBay usually has a few:

6

http://www.adafruit.com/products/1675 cheapest so far at $2.70

7

Shipping might not be so great, though.

8

Actually Adafruit is really cheap, will send usps I think.

Tim, is this for xilinx fpgas? If so, you want 2mm not 1.27mm.

9

Thx,
I know it is 1.27mm, because I am restocking my existing supply.But I didn’t know xilinx fpgas was 2mm, I will keep that in mind for the future.

10

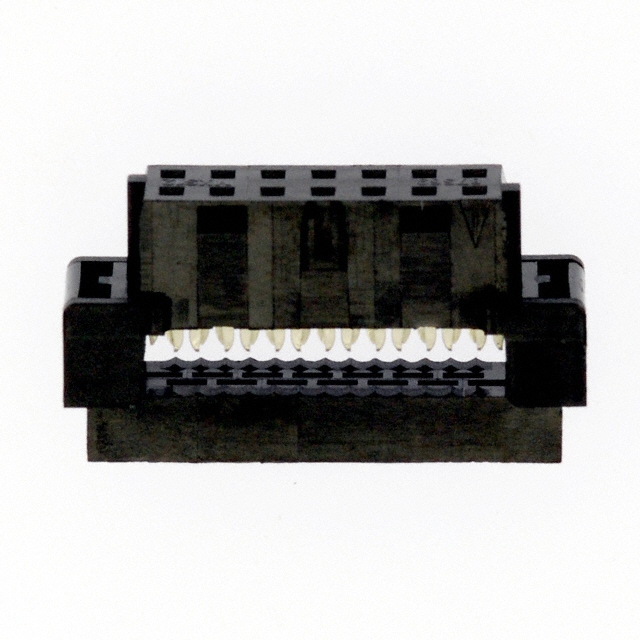

For the record, the xilinx ones are WM14314-ND on digikey. They’re a very specific shape.

image640×640 183 KB
